16MnCr5 is a low-carbon case-hardening steel known for its excellent wear resistance, high surface hardness after carburizing, and good toughness in the core. It is widely used in the manufacture of components requiring a hard surface and strong core. At Steelmet Industries, we manufacture and supply 16MnCr5 steel bars in hot rolled, bright, and custom-profiled forms, made from tested and traceable material to meet the most demanding applications.
📊 Chemical Composition of 16MnCr5 Steel
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.14 – 0.19 |
| Manganese (Mn) | 1.00 – 1.30 |
| Chromium (Cr) | 0.80 – 1.10 |
| Silicon (Si) | 0.10 – 0.40 |
| Sulphur (S) | ≤ 0.035 |
| Phosphorus (P) | ≤ 0.035 |
🧪 Mechanical Properties (Typical After Case Hardening)
| Property | Value |
|---|---|
| Core Tensile Strength | 650 – 850 MPa |
| Case Hardness | 58 – 62 HRC |
| Core Hardness | ~28–34 HRC |
| Elongation | 10 – 15% |
| Impact Resistance | Good (after proper heat treatment) |
Properties vary depending on heat treatment and case depth.
🔁 Equivalent Grades of 16MnCr5
| Standard | Equivalent Grade |
|---|---|
| AISI / SAE | 5115 |
| DIN / EN | 1.7131 |
| IS (India) | 16MnCr5 (IS 5517) |
| JIS | SCM415 (similar) |
| BS | 590M17 (similar) |
⚙️ Applications of 16MnCr5 Steel
16MnCr5 is a preferred steel for parts that undergo carburizing and require a combination of:
-
High wear resistance at the surface
-
Good core toughness and fatigue strength
Common applications include:
-
Transmission gears and shafts
-
Gearbox components
-
Bushings and sprockets
-
Pinions and rings
-
Timing gear components
-
Construction and agricultural machinery parts
-
Automotive driveline components
🔧 Machinability, Weldability & Heat Treatment
-
Machinability: Good in soft-annealed or normalized state
-
Weldability: Moderate – Preheating is recommended for thick sections
-
Heat Treatment Options:
-
Carburizing: 870–950°C
-
Hardening: 800–820°C followed by oil quenching
-
Tempering: 150–200°C (to relieve stresses post-hardening)
-
Annealing: ~680–710°C
-
Normalizing: ~870–900°C
-
The steel responds well to deep case hardening, making it suitable for wear-critical components.

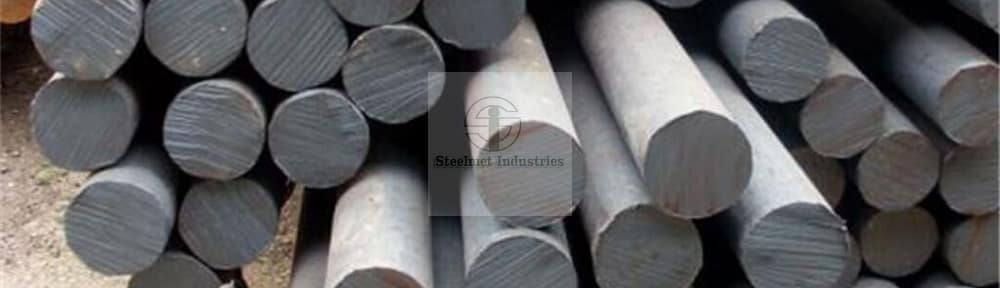

🧱 16MnCr5 Steel Bars from Steelmet Industries
We supply 16MnCr5 steel in:
-
Bright Bars: Drawn, Peeled, Ground – for precision components
-
Hot Rolled Bars: Rounds, Flats, Squares – for forging and machining
-
Custom Profiles: Hexagons, Round Corner Squares, D-shaped bars
-
Size Range:
-
Rounds: 12 mm to 90 mm
-
Flats and Profiles: As per customer requirements
-
-
Tolerances: ISO H9/H10 or as per specification
-
Supply Condition: Annealed, Normalized, or Case-Hardened
Every bar is produced with strict dimensional control, low decarburization, and verified mechanical and chemical properties.
🏭 Why Choose Steelmet Industries for 16MnCr5?
✅ Manufactured from quality billets (VD route available on request)
✅ Available in ready stock or custom mill-made lots
✅ Supplied with material test certificates and full traceability
✅ Reliable partner for automotive OEMs, gear manufacturers, and machinery builders
✅ Option for third-party inspection and NABL-certified lab reports
✅ On-time delivery and responsive technical support
📜 Certifications & Compliance
-
Supplied with Manufacturer Test Certificate (MTC)
-
Conforms to EN 10084 / IS 5517 and customer specifications
-
Optional UT (Ultrasonic Testing), mechanical test reports, and NABL lab tie-ups available
